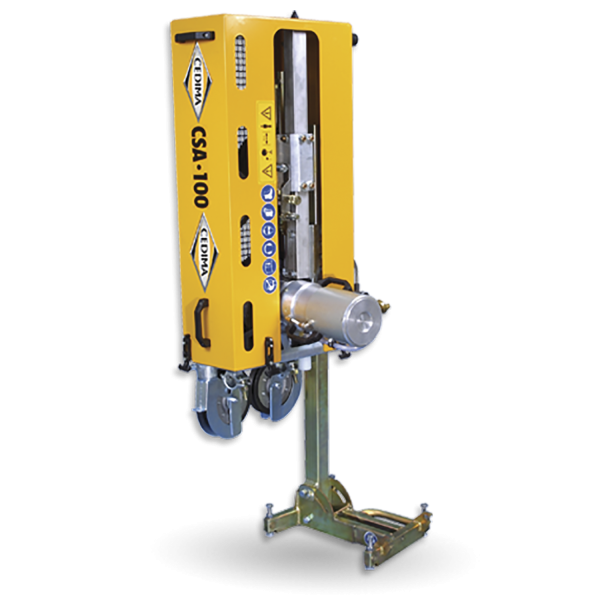

WIRE SAW CSA-100E
High frequency electric wire cutter with automatic cutting force control.
| MODEL | CSA-100E |
| Storage rolls | 8 pcs. |
| Wire in storage | 4,9/10,5 m |
| Maximum storage capacity | 6,5+1,5*m |
| Engine | HFM-18.1 (18 kw) |
| Weight without motor | 54 kg |
| Weight with motor | 75,5 kg |
| Oil feed flow rate | 1.15 l/min |
| Maximum pressure supply | 100 bar |
| Dimensions | 1050/300/460 |
| APPLICATIONS FOR THE CSA-100E | ||
| REFERENCE | TYPE | DESCRIPTION |
| 30000463 | CSA-100 | Automatic storage, 2 guide pulleys and 8 storage pulleys. 8m |
| 30000467 | —— | Thread protector (CEE regulation mandatory) |
| 30000270 | HFM-18.1 | High frequency motor. 18 kw, with 10 m of cable. |
| 30000345 | HF-28 | Universal high frequency control |
| 30001089 | HAG-2 | Hydraulic feed unit. 230v/50Hz, 1,25 l/min, 0,95 bar. |
| 30000421 | —– | Set of 2 hoses of 10 m. for wire feeding. |
| 30000314 | —– | HF-28 to HAG-2 control line |
| 30001033 | MF-6000 | Wall mounting foot. |
| 30000299 | —— | Control box with 10m cable for HF-28 |
| ALTERNATIVE AND ACCESSORIES CSA-100E | ||
| REFERENCE | TYPE | DESCRIPTION |
| 30000300 | —– | Wireless control box for HF-28 (alternative to wired box) |
| 30001033 | MF-6000 | Foot for wall or floor mounting with tube MF-6000 |
| 30000465 | —– | 360° precision foot with mounting tube. |
| 30000421 | —– | Set of 10m hoses for yarn feed with HSP-12 |
