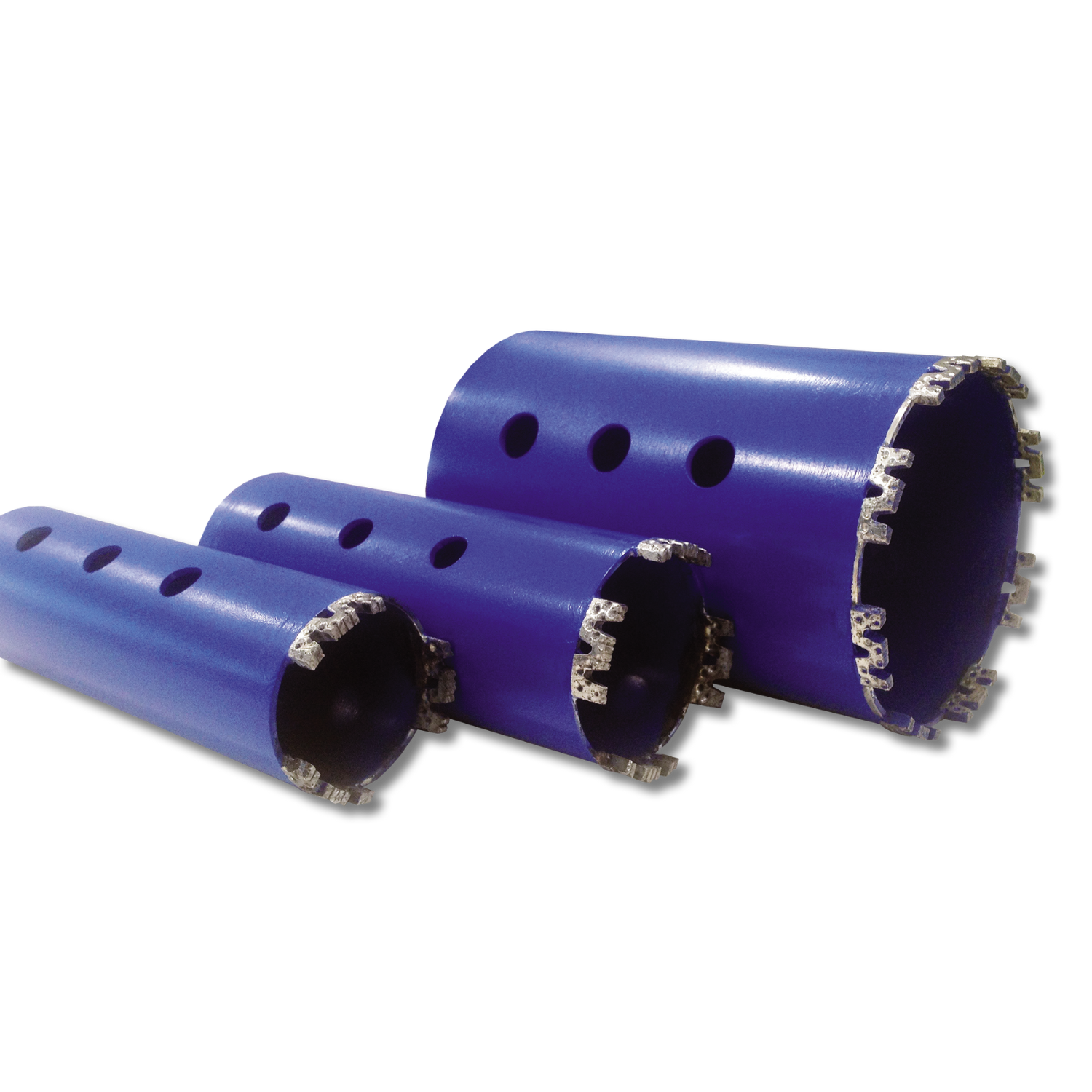

DRY DRILLING CROWNS
FOR MANUAL MACHINE
APPLICATION: BRICK, BLOCK AND LIGHT MASONRY WALLS
SEGMENT
| REFERENCE 1 | REF 2 | RING SGTO. | DIAM | LONG. BODY
REF1 |
LONG. BODY
REF2 |
CONNECTION |
| MCW- 52/65 | /155 |  |
52 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 57/65 | /155 | |
57 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 62/65 | /155 | |
62 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 67/65 | /155 | |
67 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 72/65 | /155 | |
72 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 77/65 | /155 | |
77 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 82/65 | /155 | |
82 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 87/65 | /155 | |
87 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 92/65 | /155 | |
92 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 102/65 | /155 | |
102 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 107/65 | /155 | |
107 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 112/65 | /155 | |
112 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 117/65 | /155 | |
117 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 122/65 | /155 | |
122 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 127/65 | /155 | |
127 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 132/65 | /155 | |
132 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 142/65 | /155 | |
142 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 152/65 | /155 | |
152 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 162/65 | /155 | |
162 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCW- 200/65 | /155 | |
200 mm | 65 mm | 155 mm | M16-HEX/SDS |
CROWN COUPLING
(See accessories)
| REFERENCE | HOOKING | DESCRIPTION | |
| 6 | MCCONECTM16 | M 16 | Hexagonal Connector – M16 Male |
| 7 | MCCONECTSDS | M 16 | SDS+ Connector – Male M16 |
| 8 | MCCENTRA155 | Conical | Centering drill 155 mm |
| 9 | MCCENTRA65 | Conical | Centering drill 65 mm |
