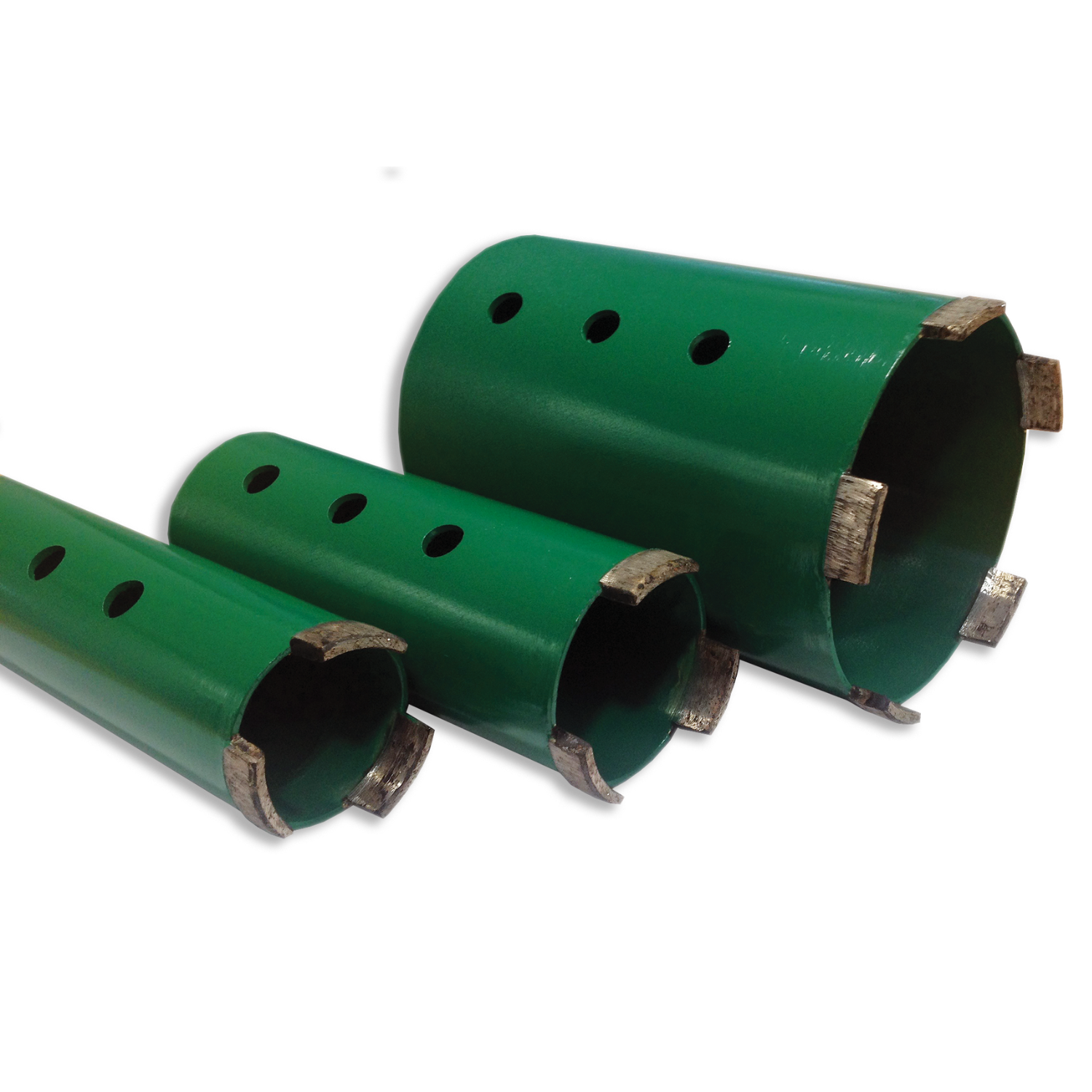

Granite Crowns
DRY DRILLING CROWNS FOR MANUAL MACHINES
APPLICATION: GRANITE DRILLING
RING
SEGMENT
| REFERENCE 1 | REF 2 | RING | DIAM | BODY LENGTH | CONNECTION | |
| SGTO. | REF1 | REF2 | ||||
| MCG-15/65 | /155 | |
15 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-16/65 | /155 | |
16 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-18/65 | /155 | |
18 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-20/65 | /155 | |
20 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-22/65 | /155 | |
22 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-24/65 | /155 | |
24 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-25/65 | /155 | |
25 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-28/65 | /155 | |
28 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-30/65 | /155 | |
30 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-31/65 | /155 | |
31 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-32/65 | /155 | |
32 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-33/65 | /155 | |
33 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-34/65 | /155 | |
34 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-35/65 | /155 | |
35 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-36/65 | /155 | |
36 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-37/65 | /155 | |
37 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-38/65 | /155 | |
38 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-39/65 | /155 | |
39 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-40/65 | /155 | |
40 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-41/65 | /155 | |
41 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-42/65 | /155 | |
42 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-44/65 | /155 | |
44 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-45/65 | /155 | |
45 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-46/65 | /155 | |
46 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-47/65 | /155 | |
47 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-49/65 | /155 | |
49 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-50/65 | /155 | |
50 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-51/65 | /155 | |
51 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-52/65 | /155 | |
52 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-57/65 | /155 | |
57 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-62/65 | /155 | |
62 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-67/65 | /155 | |
67 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-72/65 | /155 | |
72 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-77/65 | /155 | |
77 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-82/65 | /155 | |
82 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-87/65 | /155 | |
87 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-92/65 | /155 | |
92 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-102/65 | /155 | |
102 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-107/65 | /155 | |
107 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-112/65 | /155 | |
112 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-117/65 | /155 | |
117 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-122/65 | /155 | |
122 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-127/65 | /155 | |
127 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-132/65 | /155 | |
132 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-142/65 | /155 | |
142 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-152/65 | /155 | |
152 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-162/65 | /155 | |
162 mm | 65 mm | 155 mm | M16-HEX/SDS |
| MCG-200/65 | /155 | |
200 mm | 65 mm | 155 mm | M16-HEX/SDS |
CROWN COUPLING (See accessories)
| REFERENCE | HOOKING | DESCRIPTION | |
| 6 | MCCONECTM16 | M16 | Hexagonal Connector - M16 Male |
| 7 | MCCONECTSDS | M16 | SDS+ Connector - Male M16 |
| 8 | MCCENTRA155 | Conical | Centering drill 155 mm |
| 9 | MCCENTRA65 | Conical | Centering drill 65 mm |
